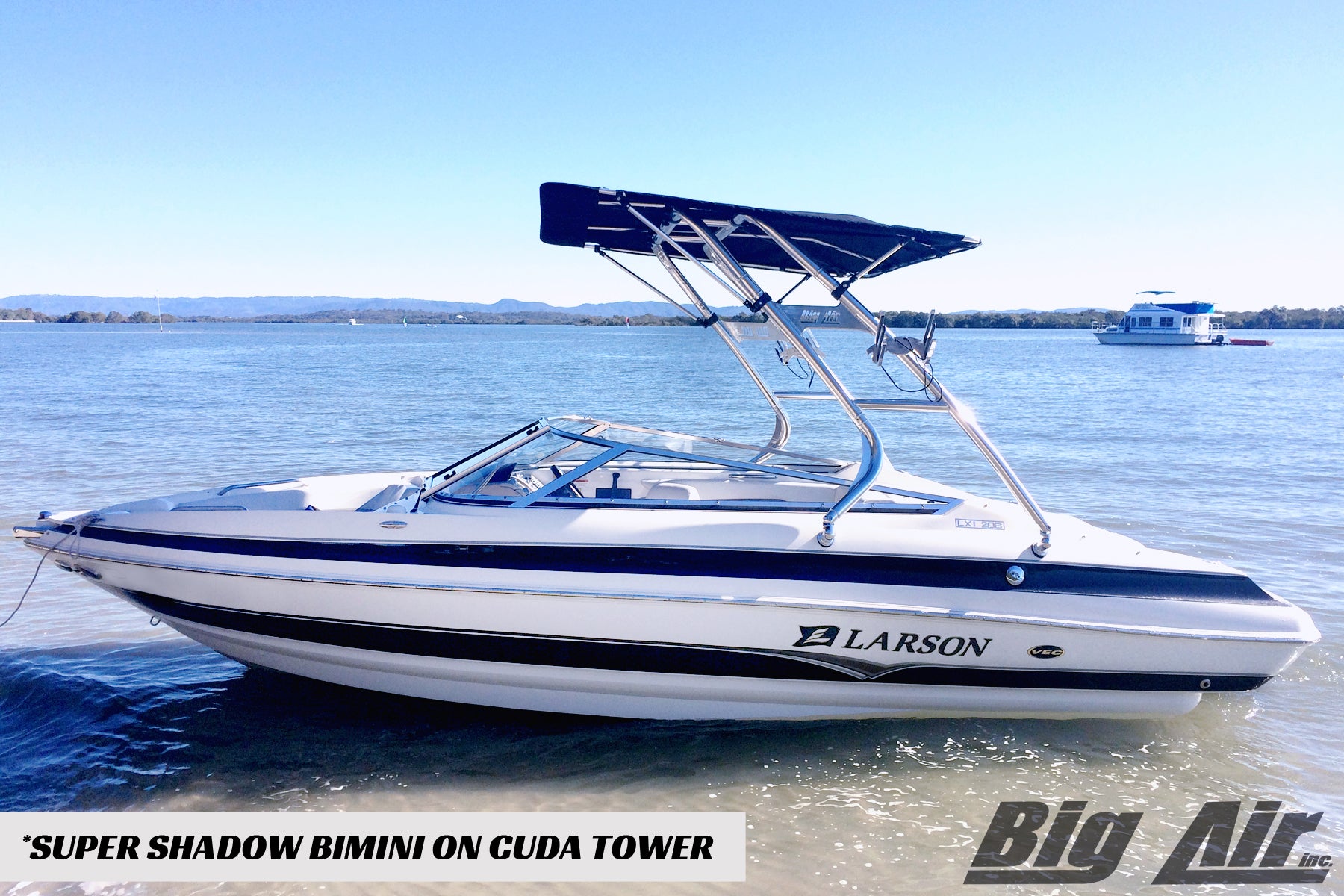

Cuda Wakeboard Tower

The Big Air Cuda Wakeboard Tower is a bold, forward-swept design straight from Big Air’s R&D department. Instead of paying $5,000 to $10,000 for a factory tower, the Cuda gives you a high-end look and exceptional quality at a fraction of the price. Built from strong yet lightweight 6061-T6 aluminum, this tower provides a stable pull and an ultra-polished finish or black powder coat option.

Standing at approximately 7 feet when mounted, the Cuda eliminates the low-clearance issues of many towers, making it easy to install speakers and biminis without obstruction. The universal design fits boats from 72” to 103” wide, with possible options for narrower or wider boats upon request. The Cuda is also designed for convenience, folding down quickly to 26” above the gunnel for easy storage.

Key Features

• Universal Fit – Accommodates boats 72”-103” wide (contact us for options outside this range)
• Forward-Swept Design – Can be reverse-mounted for a different look
• Lightweight & Strong – 6061-T6 aluminum construction with 2.25” diameter tubing for reduced flex
• Telescoping Top Section – Makes installation easier on any boat
• Built-In Mounts – Ready for Razor Series racks with a simple stainless steel fastener
• Rigid & Stable – Built-in corner trusses reduce flex in rough water and on the road
• Flexible Mounting Options – Can be installed on the side or top of the boat gunnels
• Silent, Secure Design – Engineered to prevent rattling, creaking, or moaning on the water
• Swivel Rope Head – Allows free movement of the tow rope
• Collapses in Minutes – Reduces to 26” above the gunnel when folded
• Pre-Drilled for Wiring – Makes running cables for lights and accessories easy
• 5-Year Warranty – Built for durability and long-term performance

Installation Details

• Mounting Hardware Included – Comes with large aluminum backer plates for hull reinforcement
• Single-Bolt Mounts – Minimizes drilling through the hull
• Estimated Installation Time – 3 to 6 hours for DIY or a Big Air dealer install
• Navigation Light Capable – Compatible with most lighting setups
• Front-to-Back Stance – Measures 39” for a secure fit

Hull Reinforcement Recommendation

If your hull is thinner than 3/8”, we recommend using a Big Air Hull Reinforcement Kit.  Contact us to purchase or for more info.

• Aluminum Kit – Includes four 3/16-inch thick aluminum plates (6” x 9”), which can be shaped to fit your hull.
• Plywood Kit – Includes four 1/2-inch thick marine-grade plywood plates (5” x 9”) for added support.

OnlyInboards Take

One of the standout features of the Cuda is its ability to be mounted forward or backward, a rare feature among wakeboard towers. We think it looks fantastic either way, and feedback has been overwhelmingly positive. We would not hesitate to put this on our own boat.
