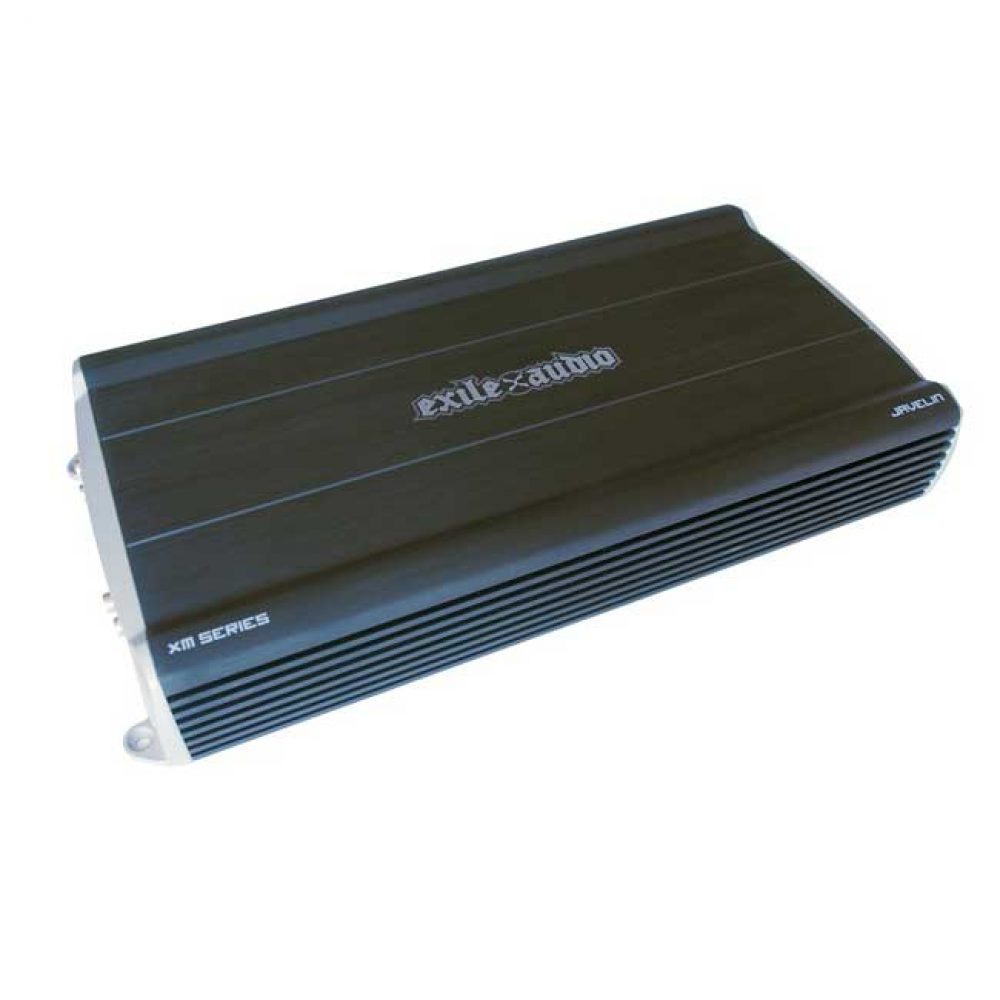

Exile Javelin 5-Channel Marine Amplifier

Big Power, Small Footprint. The Exile Javelin is a high-performance 5-channel Class-D marine amplifier designed to power your entire 8-speaker cabin setup while delivering 800W RMS to your subwoofer. Engineered for the harsh marine environment, it features stainless steel hardware, epoxy-coated circuit boards, and superior moisture resistance. Compact yet powerful, the Javelin ensures optimal sound performance for both cabin and bass in a package that measures just 15”L x 7.5”W x 2.3”H.

Every unit is CEA-2006 compliant and bench-tested, guaranteeing verified, high-output power that meets or exceeds rated specs. If you want unmatched Exile Power in a durable, space-saving design, the Javelin is the ultimate solution.

Key Features:

✔ 5-Channel Class-D Design – Powers an 8-speaker system + subwoofer
✔ 150W x 4 @ 2Ω + 800W x 1 @ 2Ω – High-output performance
✔ Epoxy-Coated Circuit Boards – Protects against moisture & corrosion
✔ Stainless Steel Hardware – Built for extreme marine conditions

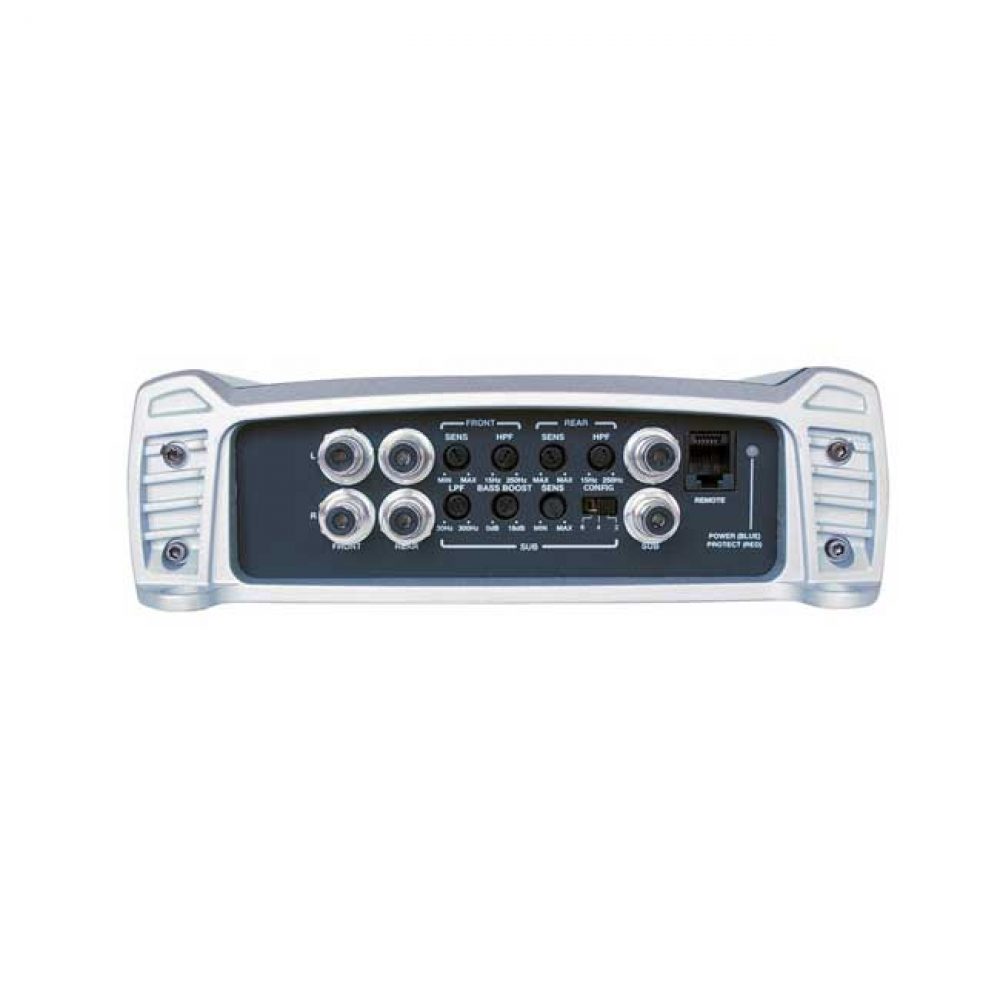

✔ Low-Pass & Subsonic Crossovers (50-250Hz & 15-250Hz) – Precision tuning
✔ Bass Boost (0 to +18dB @ 45Hz) – Deep, controlled bass response
✔ Remote Bass Control Included – Adjust bass levels on the fly
✔ CEA-2006 Compliant & Bench-Tested – Verified performance

Power Ratings:

🔹 Front & Rear Channels:

• 4Ω: 100W x 4
• 2Ω: 150W x 4
• 4Ω Bridged: 300W x 2

🔹 Subwoofer Channel:

• 4Ω: 500W x 1
• 2Ω: 800W x 1

Specifications:

📡 Frequency Response: 30 – 200Hz
🎚 Gain Range: 0.2 – 6V
🎛 Total Harmonic Distortion: <0.5%
🔊 Signal-to-Noise Ratio: 92dB

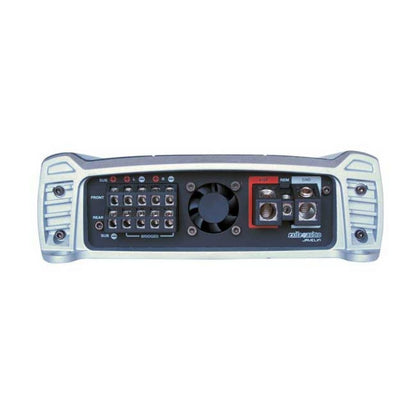

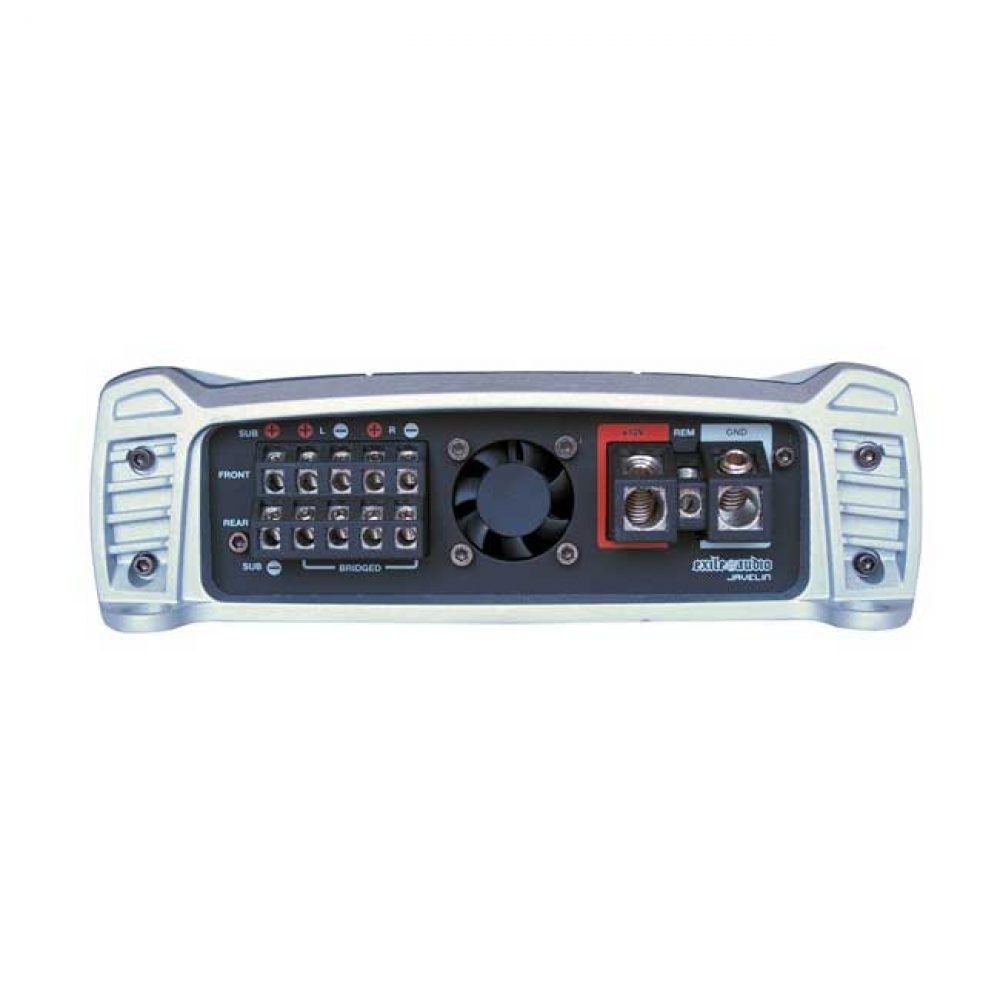

⚡ Fuse Size: 40A x 3
🔌 Recommended Wire Gauge: 4 AWG

Dimensions:

📏 Length: 15.0 in (381mm)
📏 Width: 7.5 in (190.5mm)
📏 Height: 2.3 in (58.4mm)
