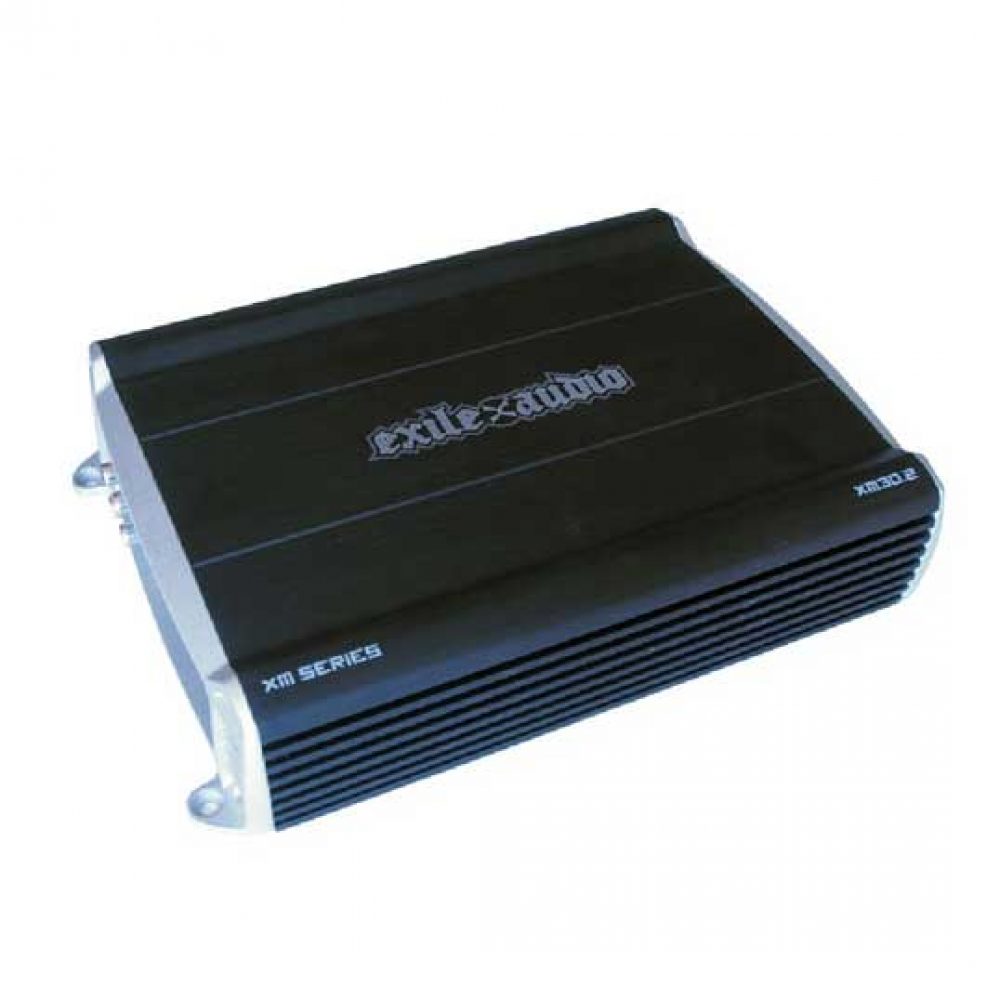

Exile XM 30.2 Amplifier

The XM30.2 Marine Amplifier is a 2-channel, 840W Class-D amplifier, built exclusively for wake sports audio. Unlike typical "marine-labeled" car amps, the XM30.2 is purpose-built for marine environments, delivering crisp, clean power to SMT65, S7, and S9 tower speakers. With 300W x 2 at 4Ω or 420W x 2 at 2Ω, it’s engineered to drive 2 or 4 tower speakers with best-in-class power output. Featuring low-pass and subsonic crossovers, bass boost, and a remote bass control, this amp delivers unmatched performance on the water.

Key Features:

✔ 2-Channel Class-D Design – High-efficiency marine amplifier
✔ Powerful Output – 300W x 2 at 4Ω, 420W x 2 at 2Ω, 840W x 1 bridged
✔ Low-Pass & Subsonic Crossovers – 50-250Hz & 15-250Hz tuning
✔ Bass Boost (0 to +18dB @ 45Hz) – Enhanced low-end response
✔ High Efficiency (>85%) – Maximizes power while reducing heat
✔ Remote Bass Control – Adjust bass levels on-the-fly
✔ Built for Marine Use – Durable, weather-resistant construction

Power Ratings:

🔹 4Ω: 300W x 2
🔹 2Ω: 420W x 2
🔹 4Ω Bridged: 840W x 1

Specifications:

📡 Frequency Response: 30 – 200Hz
🎚 Gain Range: 0.2 – 6V
🎛 Total Harmonic Distortion: <0.5%
🔊 Signal-to-Noise Ratio: 92dB
⚡ Fuse Size: 40A x 2
🔌 Recommended Wire Gauge: 4 AWG

Dimensions:

📏 Length: 10.8 in (274.3mm)
📏 Width: 7.5 in (190.5mm)
📏 Height: 2.3 in (58.4mm)
