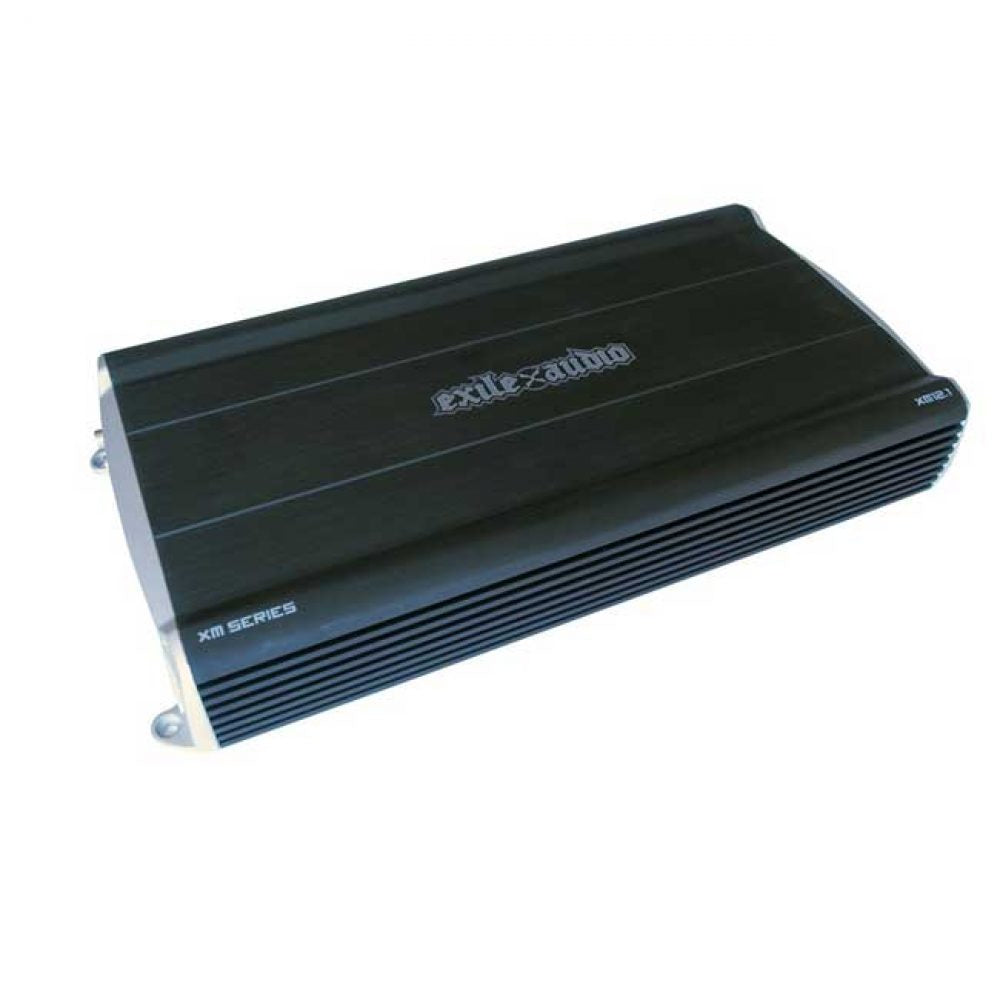

Exile XM20.1 Marine Amplifier

The XM Series Monoblock Marine Amplifier is engineered for extreme power and durability, delivering a massive 2000W at 1Ω. Designed for marine and extreme installations, it features coated 5-layer epoxy circuit boards, stainless steel components, and an advanced aluminum heat sink that ensures superior heat dissipation. With CEA-2006 compliance and bench-tested performance, this amp guarantees verified, high-output power that you can trust. Whether you're pushing a single powerful subwoofer or a dual-sub setup, the XM Series delivers unmatched bass performance.

Key Features:

✔ Monoblock Class-D Design – Built for powerful subwoofer performance
✔ 2000W x 1 @ 1Ω / 1600W x 1 @ 2Ω – Massive output power
✔ Coated 5-Layer Epoxy Circuit Boards – Marine-grade durability
✔ 9.8g Aluminum Heat Sinks – Exceptional heat dissipation
✔ CEA-2006 Compliant & Bench-Tested – Verified, consistent performance

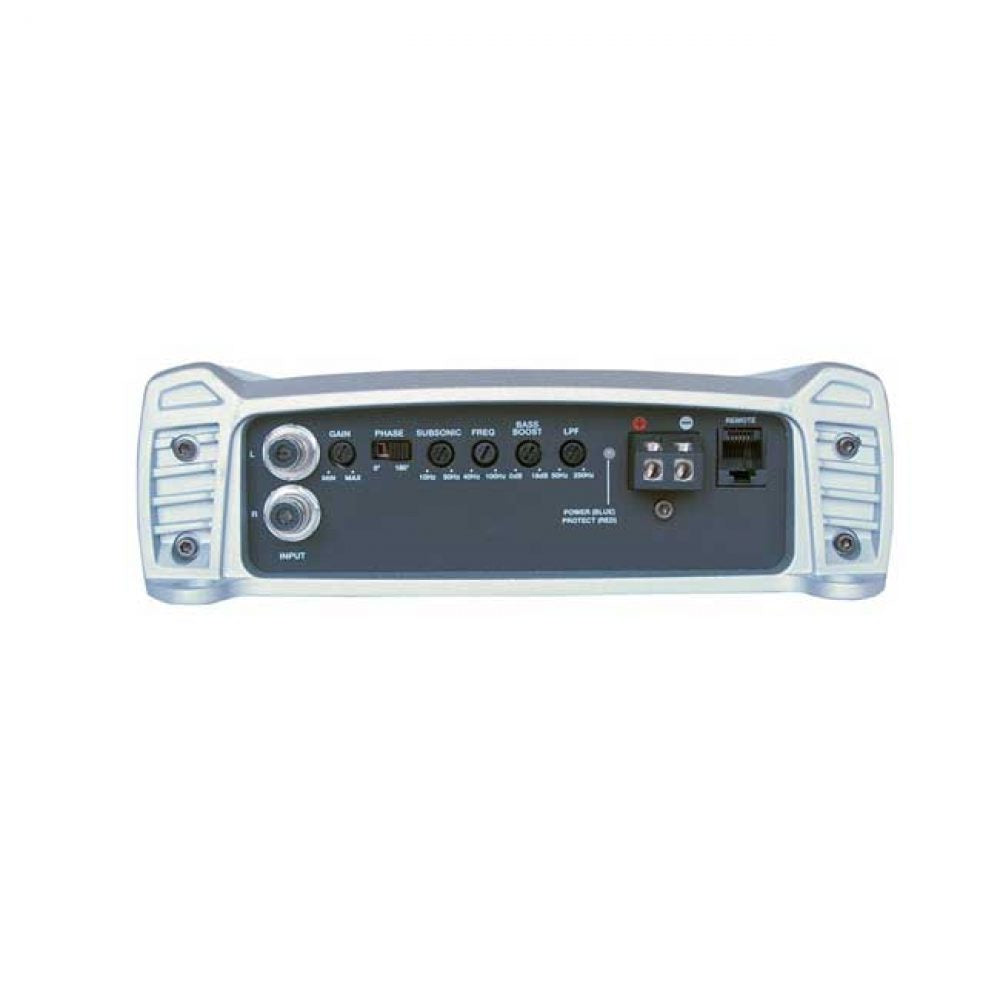

✔ Low-Pass & Subsonic Crossovers (50-250Hz & 15-250Hz) – Precision tuning
✔ Bass Boost (0 to +18dB @ 45Hz) – Enhanced low-end response
✔ Remote Bass Control Included – Adjust bass levels on the fly

Power Ratings:

🔹 2Ω: 1600W x 1
🔹 1Ω: 2000W x 1

Specifications:

📡 Frequency Response: 30 – 200Hz
🎚 Gain Range: 0.2 – 6V
🎛 Total Harmonic Distortion: <0.5%
🔊 Signal-to-Noise Ratio: 92dB
⚡ Fuse Size: 80A x 3
🔌 Recommended Wire Gauge: 4 AWG

Dimensions:

📏 Length: 17.0 in (431.8mm)
📏 Width: 7.5 in (190.5mm)
📏 Height: 2.3 in (58.4mm)
