Indy Universal Tower Bimini

Indy Universal Wake Tower Bimini

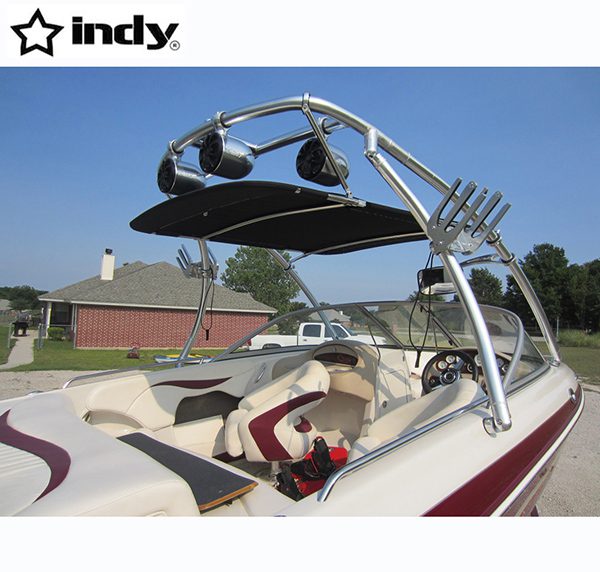

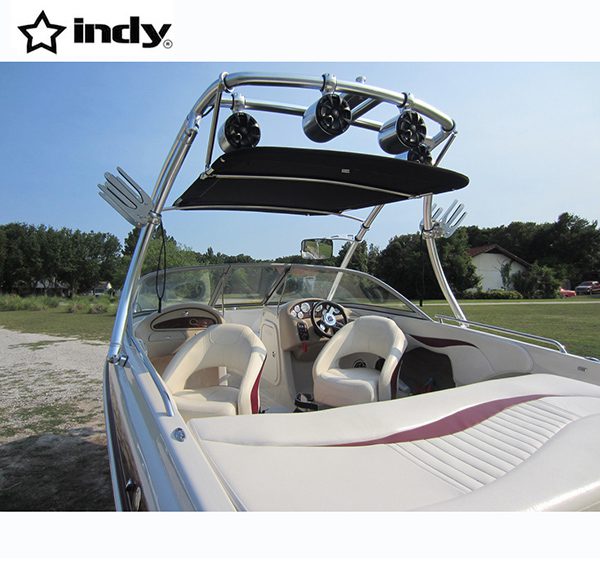

The Indy Universal Wake Tower Bimini is designed to fit most Indy towers as well as other popular wakeboard tower brands, including Monster, Aerial, Origin, Krypt, and more. This bimini works exclusively with towers that have tubing sizes of 2", 2.25", or 2.5". If your tower has a different size, please note that our clamp inserts are not compatible.

Measuring for Fit
To confirm that this bimini top is the right size for your tower, follow these steps:

1. Mark the desired mounting height on both the front and rear legs of your wakeboard tower.
2. Measure the width of your boat between the front legs and write down this measurement. Repeat the process for the rear legs.
3. Use the smallest measurement—if it is more than 62 inches, the tower bimini will fit.

Available Sizes

• Small (1350V model): 53 in (W) x 75 in (L)
• Large (1580V model): 62 in (W) x 75 in (L)

Unique Features
Indy’s innovative, patented bimini design from 2008 makes this the most universal and durable flat-style wakeboard tower bimini on the market. The bimini is fully adjustable to fit your tower, sliding forward or backward for minor adjustments. Flexible support arms allow for mounting at either the front or rear of the bimini. Additionally, the secondary cross support is pin-adjustable to attach between the front or rear legs, securing the bimini to your tower clamps without requiring any cutting. This robust system can hold wakeboards, tubes, waterskis, and optional aftermarket racks.

Note: This bimini top is not foldable, but the removable canvas allows you to easily detach it when trailering or for storage. Simply unzip and unfasten the Velcro system to remove the cover, keeping the canvas protected when not in use.

Optional Add-Ons

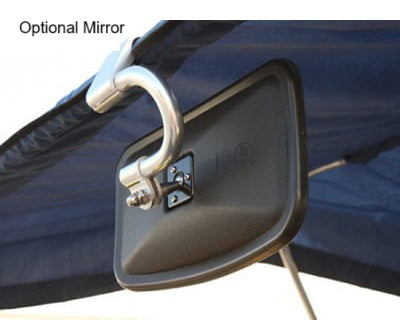

1. Bimini Mirror - Rear View Mirror that mounts to your bimini top

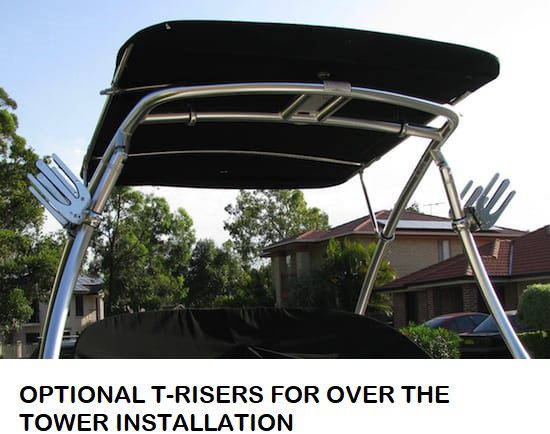

2. T-Risers - Allows you to mount the bimini top over the tower

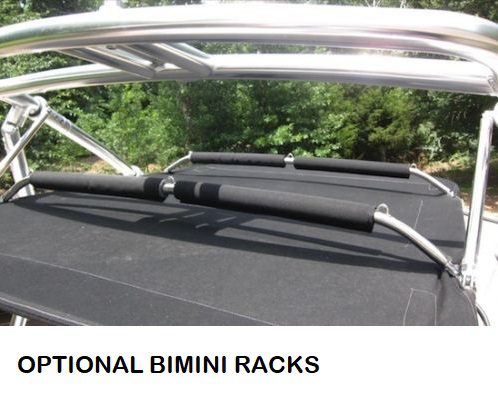

3. Board Racks - Allows you to stow 2 wakeboards on top of the bimini

Materials & Build Quality

• Canvas: Made from marine-grade VIII UV-resistant material for long-lasting durability.
• Frame: Built with 304 stainless steel, requiring regular polishing and cleaning to maintain.
• Clamps: Alloy 6061 Aircraft CNC-machined with rubber inserts to protect your tower.

Over-the-Tower Setup
For an elevated “over-the-tower” setup, you can purchase our T-Raisers. These attach to the top bar of your tower and connect to the adjustable cross beam, positioning the bimini above the tower for additional overhead clearance.

Compatibility
This universal bimini top fits a variety of aftermarket brands, including Origin, Reborn, Monster, Aerial, BigAir, and Krypt. If you have any questions about compatibility, please reach out to us for assistance.

For inquiries, please contact us at 309-371-0095 or email support@onlyinboards.com.
