Roswell 900.6 Marine Amp

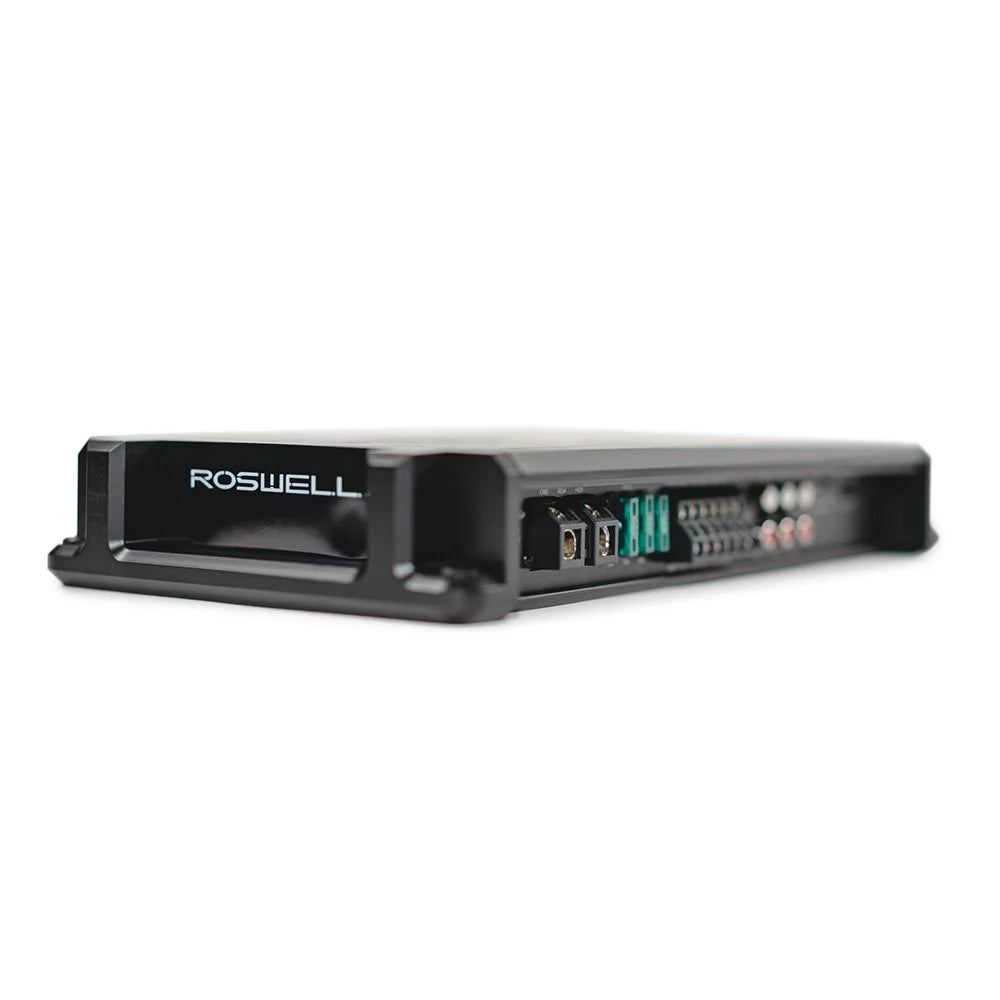

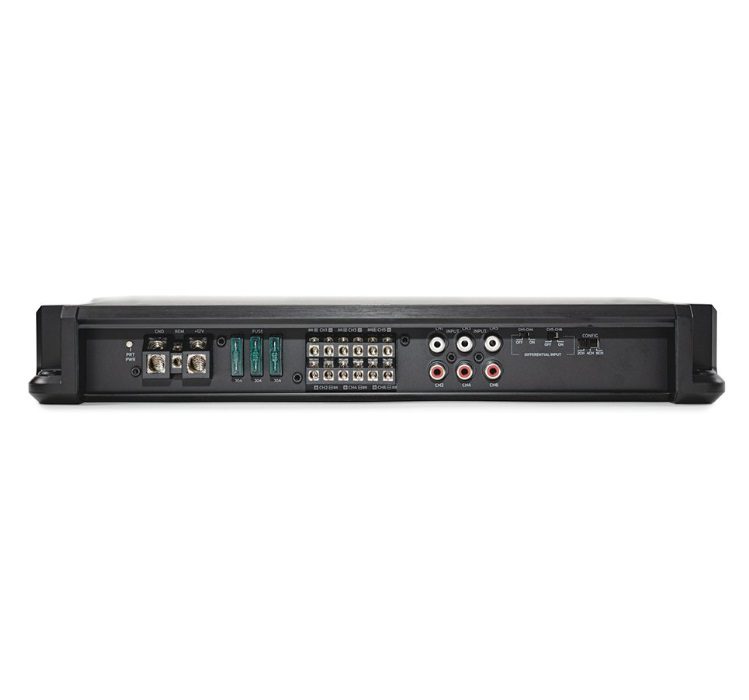

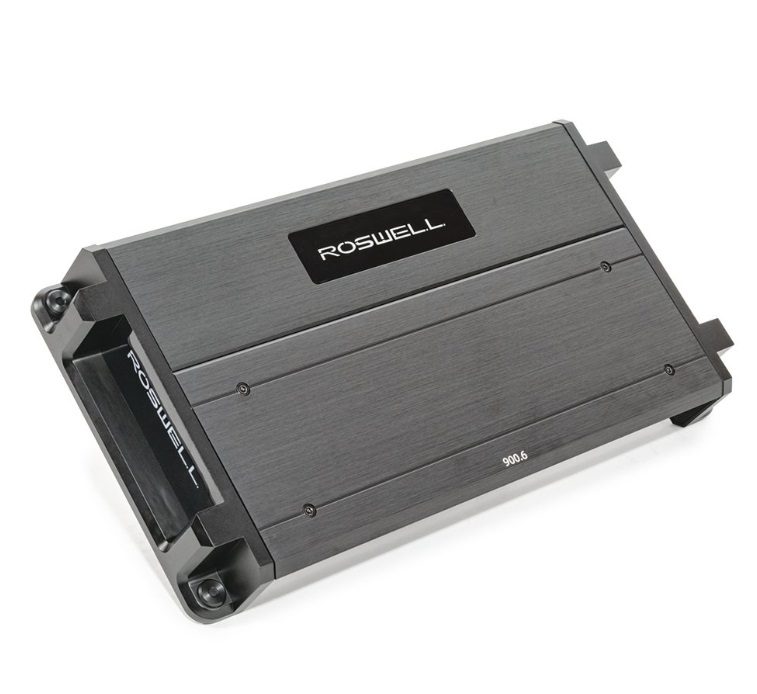

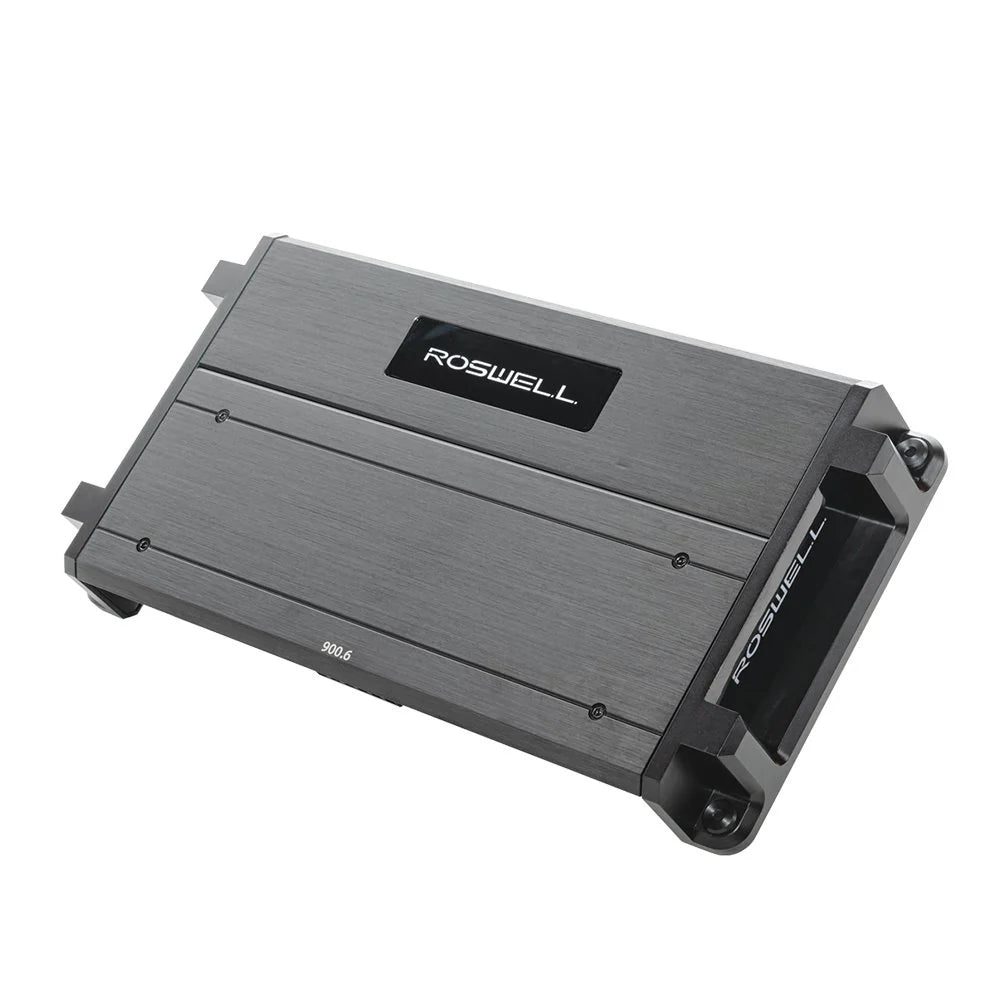

The Roswell R1 900.6 is a powerful 6-channel Class-D marine amplifier, delivering 100W RMS per channel at 4Ω—perfect for your R1 8” and R1 6.5” in-boat speakers. With calibrated crossover controls, differential RCA inputs, and a bridgeable design, it provides exceptional sound clarity and power. Built for the marine environment, it features conformal-coated PCBs and nickel-plated wire terminals for long-lasting durability.

Key Features:

✔ 6-Channel Class-D Design – Power multiple speakers with efficiency
✔ Bridgeable Configuration – Flexible power options
✔ 2Ω Stable at 165W per Channel – High-output performance
✔ Bluetooth USB Port – Convenient connectivity
✔ Calibrated Crossover Controls (FULL/HPF/LPF) – Precision tuning
✔ Differential RCA Inputs – Minimize noise & interference
✔ Tiffany-Style RCA Inputs – High-quality audio connections
✔ Bass EQ (0-18dB @ 45Hz) – Enhanced low-end response
✔ Marine-Grade Durability – Conformal-coated PCBs & nickel-plated terminals
✔ Stackable Class-D Design – Space-saving & efficient

Power Ratings (RMS):

🔹 4Ω: 100W x 6
🔹 2Ω: 165W x 6
🔹 Bridged 4Ω: 300W x 3

Specifications:

📡 Frequency Response: 10Hz – 25kHz
🎚 Input Sensitivity: 0.2 – 10.0V
🎛 HPF (High Pass Filter): 30Hz – 300Hz
🎛 LPF (Low Pass Filter): 30Hz – 300Hz

Dimensions:

📏 Inches: 1.90" x 7.06" x 13.67"
📏 Centimeters: 4.83 x 17.94 x 34.74
