Tige RZ4 Complete Ballast System (2007-2008)
Tige RZ4 Complete Ballast System (2007-2008)
If you own a 2007-2008 Tige RZ4 and want a fully automated ballast system that fills and drains at the push of a button, this Complete Reversible Pump Ballast Solution is the upgrade you’ve been looking for. Designed for a seamless fit, maximum capacity, and optimized storage efficiency, it delivers top-tier performance behind the boat while making your time on the water more convenient and enjoyable.
For those who want the perfect wake or wave combined with the ease of automated filling and draining, this ballast solution is the ideal choice for your 2007-2008 Tige RZ4.

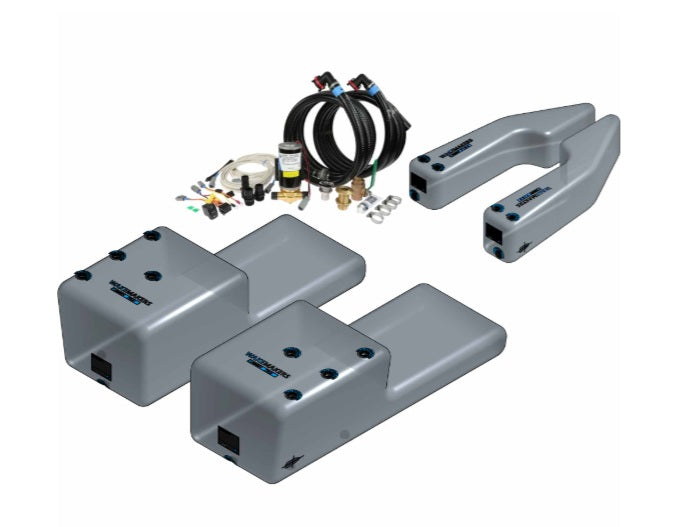

What's Included:
Ballast Bag Details & Specs
- Port Rear ExactFIT 880lb Ballast Bag: 65"L x 23"W x 20"H
- Starboard Rear ExactFIT 880lb Ballast Bag: 65"L x 23"W x 20"H
- Pair of Bow DirectFIT 220lb Ballast Bags: 54"L x 18"W x 12"H
- All necessary plugs, hoses, wiring, and pumps (based on your selection)
- Total Ballast Weight: 2,200 lbs
Pump Options:
WakeMAKERS Guppy Reversible Ballast Pump
- Fill Rate: 75 lbs/min
- Flow Rate: 680 Gallons Per Hour / 11.3 Gallons Per Minute
- Physical Dimensions: 7.95" L x 4.72" W x 3.54" H
- Inlet/Outlet: 1/2" NPT Internal Thread
- Self-Priming: Yes
- Safety Features: Ignition Protected
WakeMAKERS Premium Plug-and-Wake Reversible Ballast Pump
- Fill Rate: 110 lbs/min
- Flow Rate: 720 Gallons Per Hour / 12 Gallons Per Minute
- Physical Dimensions: 7.95" L x 4.72" W x 3.54" H
- Inlet/Outlet: 1" Hose Barb and 1/2" NPT Internal Thread
- Self-Priming: Yes
- Safety Features: Ignition Protected
Optional Timer Module
One of the biggest challenges of reversible ballast pump systems is knowing when to shut them off since they drain below the waterline. Our exclusive Timer Module eliminates the guesswork by allowing you to pre-set the pump run time, ensuring automatic shut-off when filling or draining is complete. This prevents potential damage to the pump or impeller. A timer module is included for each pump or zone selected.
Important Compatibility Notes
This ballast upgrade is compatible with Tige RZ4 models that do not have above-floor hard tanks in the rear compartments. If your boat has factory-installed hard ballast tanks in the rear lockers, check out our ballast upgrade solutions instead. Not sure which setup is right for you? Contact a Product Advisor for assistance.
